Aspen Aerials A-62
Essential Details
Under-Bridge Inspection Truck for Complex Projects

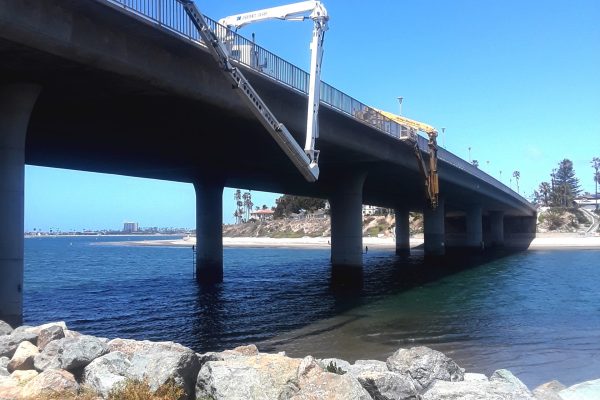

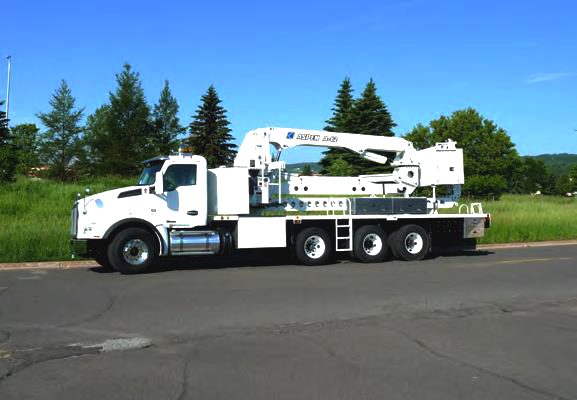

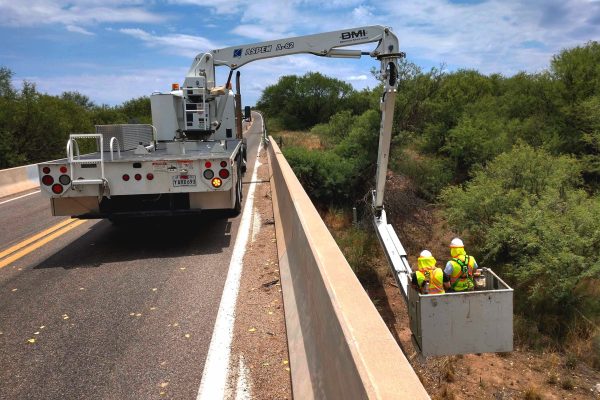

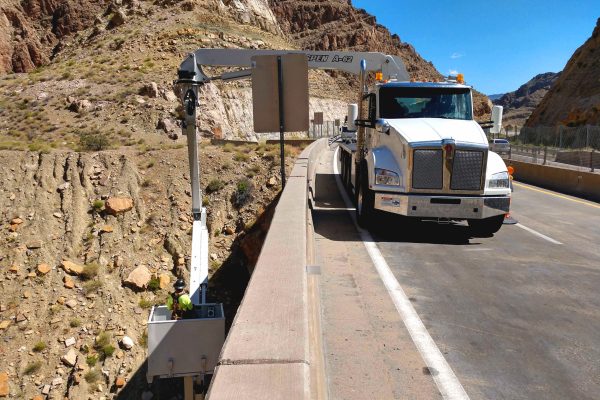

The A-62 is a high-reach under-bridge inspection truck designed for maximum access and stability. With a vertical reach of nearly 68 feet and horizontal reach of 62 feet, this bridge inspection lift is ideal for deep-span bridges, multi-girder access, and large-scale infrastructure inspections. The platform sits on a 13-foot telescoping boom, automatically levels, and eliminates the need for outriggers thanks to its advanced counterweight system.
Technical Specs
- Working Payload: 600 lb / 272 kg
- Max Horizontal Reach: 61.9 ft / 18.8 m
- Max Vertical Reach (from bridge deck): 67.7 ft / 20.6 m
Top Features & Advantages:
- Long Vertical Reach – Access up to 68 feet below the bridge
- Wide Horizontal Reach – Ideal for spanning across multiple girders
- Outrigger-Free Operation – Sliding counterweight system keeps it stable
- Smart Controls – Screen display for performance and diagnostics

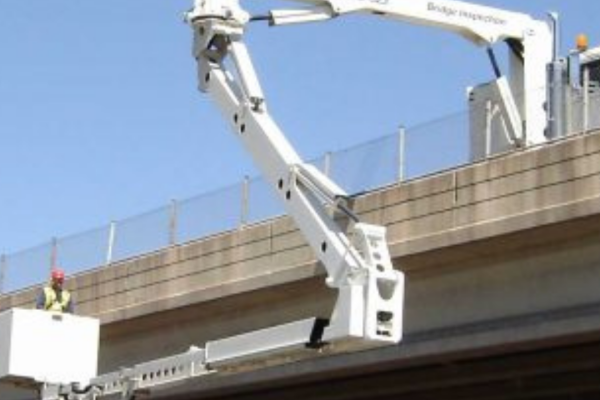

- Self-Leveling Platform – 13-ft telescoping boom with auto-leveling basket
Best For:
- Deep-span bridge inspections
- DOT or municipal inspection teams
- Utility and maintenance crews working on complex structures
- Contractors needing reliable under bridge work platform solutions
- High-clearance under-bridge inspection truck applications
- And more
FAQs About the Aspen Aerials A-62
Have questions about our equipment or services? Get in touch—our team is here to help.
What makes the A-62 different from other bridge inspection trucks?
Its extended vertical and horizontal reach allows it to access areas that other units can’t—making it ideal for high-clearance and deep-span bridges.
Does this truck require outriggers?
No, the A-62 uses a sliding counterweight system, so it stays stable without outriggers.
Is the platform adjustable while in use?
Yes, the platform automatically levels and is mounted on a 13-foot telescoping boom for easy adjustments during operation.
What is the working load capacity?
The platform supports up to 600 lb (272 kg), suitable for a two-person crew with equipment.
What rental options are available?
We offer both bare equipment rentals (equipment only) and operator-supported rentals—giving you flexibility based on your crew’s needs. All rentals include access to expert support and safety guidance as needed.
